The Pilgrim 40 was first conceived by H. Ted Gozzard on a place mat in a Peterborough, Ontario restaurant. The concept was created for a friend as an ideal boat to use on the Canal and Inter-coastal waterways for nothing more than going slow and as  a sight seeing vessel for two, with occasional guests. Forty one Pilgrim 40’s were built at North Castle Marine Ltd in Goderich, Ontario between 1983 and 1989. While the hull numbers range from 1 to 45, hull numbers 3, 4, 7 and 25 were assigned but never built.*

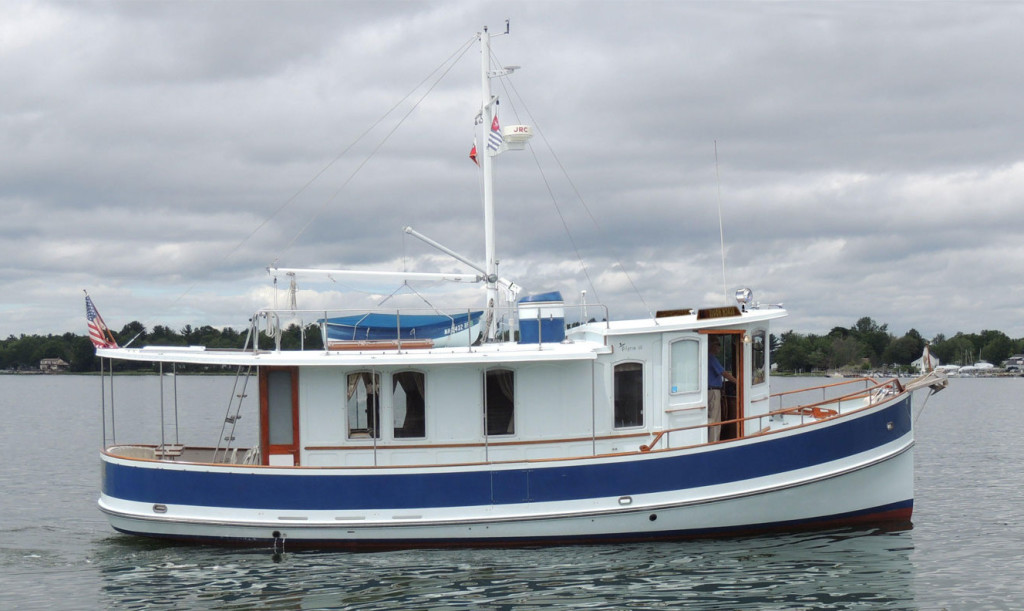

M/V Hippokampos, hull #30 and built in 1986, has previously cruised the eastern coast with extended stays in Florida, Maryland, and New Hampshire.

Specifications

Boat Name: Hippokampos
Builder: North Castle Marine
Model: Pilgrim
Designer: Ted Gozzard
Hull Shape: Soft-chine Displacement
Flag of Registry: United States
Port of: Louisville, Kentucky

Dimensions

LOA: 40′ 0″ (12.2 m)
LWL: 36 ‘0″ (11 m)
Beam: 14′ 0″ (4.26 m)
Draft: 3′ 3″ (1 m)
Displacement: 22,000 lbs (10,000 kg)
Air Draft, mast up: 24′ 6″ (7.5 m)
Air Draft, mast down: 16’ (4.9 m)
Headroom, Main Cabin: 6’6″ (2.0 m)
Headroom, Stateroom/Pilothouse: 6’4″ (1.9 m)

Engine

Engine Brand: Westerbeke
Year Built: 1986
Engine Type: Inboard
Engine/Fuel Type: Diesel
Drive Type: Direct Drive
Total Power: 100 hp
Maximum Hull Speed: 9.25 mph (8.04 knots)
Cruising Speed: 8.29 mph (7.20 knots) @ 1800 rpm
Cruising Range: 1,060 miles (920 nm) at 1.6 gal/hr
Maximum RPM: 3000 @ wot

Tanks

Fresh Water: 210 gallons (795 litres)
Fuel Tanks: 200 gallons (757 litres)
Holding Tank: 35 gallons (132 litres)

Electrical

Wired for both 12 volt DC and 110 Volt AC service. A Westerbeke 4.4KW generator handles heavier loads when off the dock while a Xantrex 3000 watt inverter handles lighter loads. A 400W solar array supplements shore and generator power.

12 Volt DC

One 12V 4D engine start battery (12V 1314CCA)
One 12V Group 25 generator start battery
Six 6V DC deep cycle house bank batteries (12V 690Ah)
Renogy 400W off-grid solar with 40A Rover charge controller
65A alternator charges engine start battery
85A alternator charges house/inverter batteries

24 Volt DC

Two 12V Group 34 AGM in series for stern thruster (24V 55Ah)

110 volt AC

SmartPlug 50A shore power connection
DEI Marine galvanic isolator
Westerbeke 4.4 KW genset
Xantrex Freedom SW 3012 sine wave inverter/charger for house batteries
Sterling ProCharge 12V 40A charger for engine/genset batteries
Marinno 12V-24V 10A charger/converter for stern thruster batteries

Mechanical

Westerbeke 100 hp diesel engine
4-blade 22X17 bronze propeller
1.5″ stainless steel shaft
Borg Warner 2.57:1 reduction gear
Dual Racor fuel filters
Morse single lever engine controls
Vetus 12V bow thruster
Side-Power 24V stern thruster
Wagner hydraulic steering with emergency tiller
Oil change system for engine and genset
Pressurized water system with 20 gallon heater
Caframo engine compartment heater

Hull & Deck

Fiberglass hull with off white gel-coat and with flag blue bulwarks and boot top. Red ablative anti-fouling bottom paint. Partially cored fiberglass house with raised non-skid on the side decks.
Simpson-Lawrence Vulcan vertical electric windlass
44 lb Rocna 20 Vulcan primary anchor with 125′ x 3/8″ BBB chain
44 lb Bruce claw anchor
35 lb CQR plow anchor
20 lb Danforth H anchor
14 lb Danforth S “lunch hook” with chain
Secondary anchor rode with 20′ x 5/16″ G3 chain and 165′ x 5/8″ twisted nylon line
Single spreader mast in tabernacle on house top
Atkins Hoyle 2000 lb dinghy hoist

Safety

Accommodations

Hippokampos provides accommodations for two or occasionally up to four in single stateroom raised pilothouse configuration. Interior is finished with varnished mahogany wainscoting and trim on white flat panels with varnished teak parquet sole. Trollycar-style indows surrounding the galley salon and helm provide natural light and ventilation as well as a large butterfly hatch in the salon and a smaller hatch in the stateroom.

* Excerpted from the Gozzard Yachts website
